PRECAST CONCRETE SHOULDER U DRAINS & COVERS

We make Concrete U Drains / Cable Trenches for storm water flow on road sides - in residential or commercial areas, basements, car parks etc. These can also be used to contain electric cables, pipes etc. Shoulders offer more protection by keeping the covers in place and prevents unnecessary movements.Our drains are Wet Cast and hence have a smooth grey finish.
They are manufactured using the vibro-compaction process which makes them strong, durable and wear resistant.
Suitable U drain covers with slits at the ends are also available.

PreCast Concrete U Drain with Shoulder 300x300 mm

300 x 300 x
2000/1000
U DRAIN

ACPSD01

2000/1000mm (L) x 562mm (SW) x 432mm (W) x 482mm (H) 75mm (T)

Inner 305mm x 300mm
Available with cover ACPSDC01

PreCast Concrete U Drain with Shoulder 600x600 mm

600 x 600 x
2000
U DRAIN

ACPSD03

2000mm (L) x 880mm (SW) x 760mm (W) x 845mm (H) 90-110mm (T)

Inner 600mm x 600mm
Available with cover

ACPSDC03

PreCast Concrete U Drain with Shoulder 900x900 mm

900 x 900 x
2000
U DRAIN

ACPSD05

2000mm (L) x 1220mm (SW) x 1057mm (W) x 1195mm (H) 120mm (T)

Inner 905mm x 900mm
Available with cover

ACPSDC05

PreCast Cover for Concrete U Drain with Shoulder 500x411x110 mm

DRAIN COVER WITH SLIT FOR 300 X 300
U DRAIN

ACPSDC01

500mm (L) x 411mm (W) x 110mm (T)

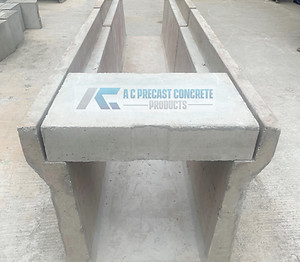

PreCast Concrete Cover Slab for U Drain with Shoulder 500x735x144 mm

DRAIN COVER WITH SLIT FOR 600 X 600
U DRAIN

ACPSDC03

500mm (L) x 735mm (W) x 144 mm (T)

DRAIN COVER WITH SLIT FOR 900 X 900
U DRAIN

ACPDC05

500mm (L) x 1050mm (W) x 160mm (T)

Concrete U Drains & Covers: Features
